Unveiling The Black Technology That Makes The Marine Crane As Stable As A Mountain in The Wind And Waves

Have you ever found it hard to believe when you see a ship undulating in the surging waves, yet the crane on board can precisely lift and move dozens of tons of goods steadily? Today, let's uncover the core mystery behind its ability to withstand storms and maintain stability.

The first challenge: The complex movements of the ocean

The stability challenges faced by marine cranes are far more complex than those of cranes on land. The land is stationary, while a ship is a platform that constantly moves with six degrees of freedom in response to waves, tides and wind.

Translation: front and back (longitudinal swing), left and right (transverse swing), up and down (vertical swing).

Rotation: forward and backward pitch (longitudinal roll), left and right roll (transverse roll), horizontal rotation (first roll).

Among them, roll and sag pose the greatest threat to the stability and operational safety of the ship crane. When a huge wave strikes, the hull tilts by more than ten degrees. The overturning moment generated by the boom and the cargo will increase sharply. Once it gets out of control, the consequences will be unimaginable.

The second line of defense: The hull and the base

The stability of a marine crane primarily stems from a solid "foundation".

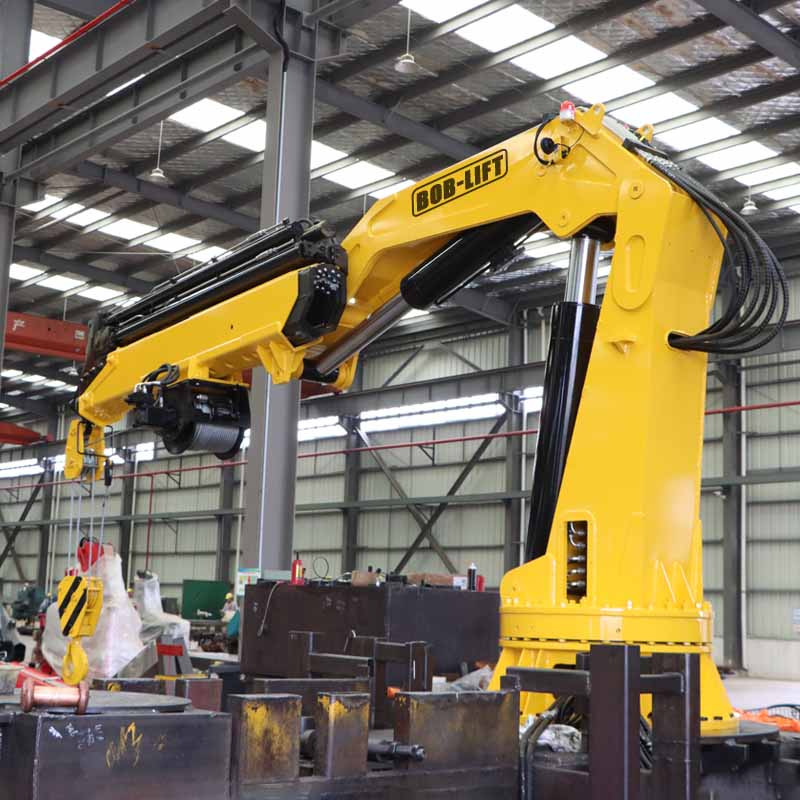

Reinforced deck and base: The marine crane is not directly installed on the ordinary deck. Beneath its base is a specially reinforced steel structure that can distribute the huge load force to the main frame of the ship. This is just like building a solid stage for a strongman, ensuring that his feet won't collapse when he exerts force.

Hull stability system: Modern ships themselves are the first line of defense for stability. Many ships are equipped with anti-sway fins (which extend from the sides of the ship like fish fins and counteract sway by adjusting the Angle) and ballast water systems (which balance the hull by allocating water in different holds), which can effectively reduce the roll amplitude of the hull and create a relatively stable operating environment for the ship crane.

The third core: Active and passive stabilization systems

1. Passive stabilization system: The "anchor" of machinery

This type of system does not require external power and relies on the mechanical structure itself to lock the position.

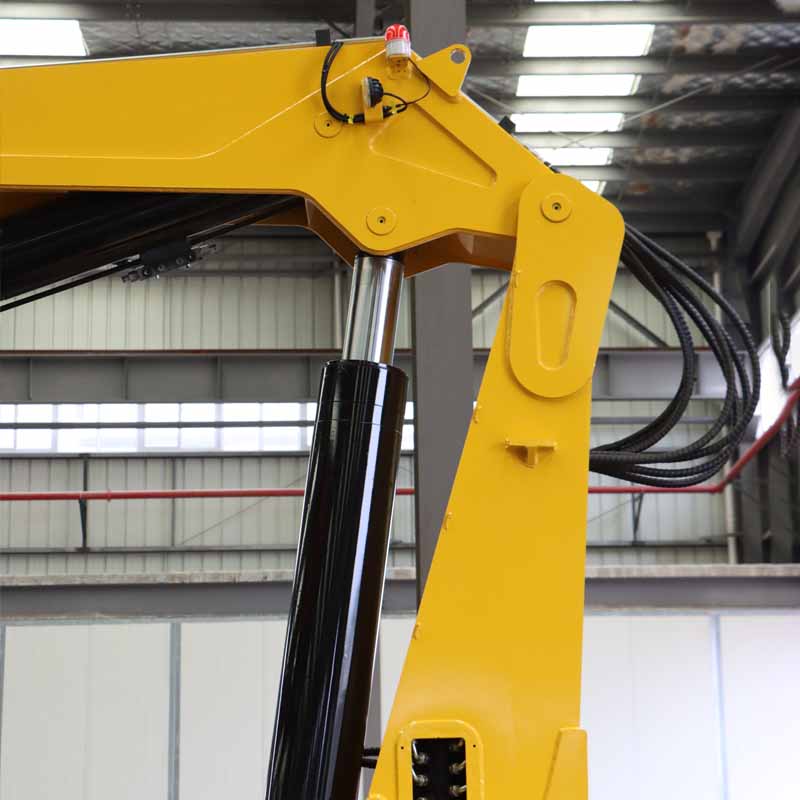

Hydraulic locks and mechanical brakes: When the boom needs to be fixed at a certain position, an advanced hydraulic lock acts like a "hydraulic wrench", firmly locking the oil in the hydraulic cylinder to form a rigid support and resist the impact of external forces. Meanwhile, the multi-plate safety brake on the hoist mechanism will automatically lock in case of hydraulic pressure loss or system failure to prevent the heavy object from falling. They are the most reliable safety bottom line for marine cranes.

2. Active Stabilization System: The Intelligent "Balance Master"

This is the essence of modern high-tech marine cranes. The system perceives in real time through sensors and the computer actively issues instructions to counteract the shaking.

The "sensory" system - sensor network: Inclinometers, motion reference units (MRUs), GPS and load sensors distributed throughout the crane and the hull, like the vestibular and visual systems of the human body, measure the roll, roll, heave data of the hull, as well as the Angle of the boom and the weight of the cargo in real time at a frequency of dozens or even hundreds of times per second.

"Brain" - Central Controller: The collected data is instantly sent to the powerful central controller. The advanced algorithm built into the controller can predict the movement trajectory of the hull and the hook in the next few seconds.

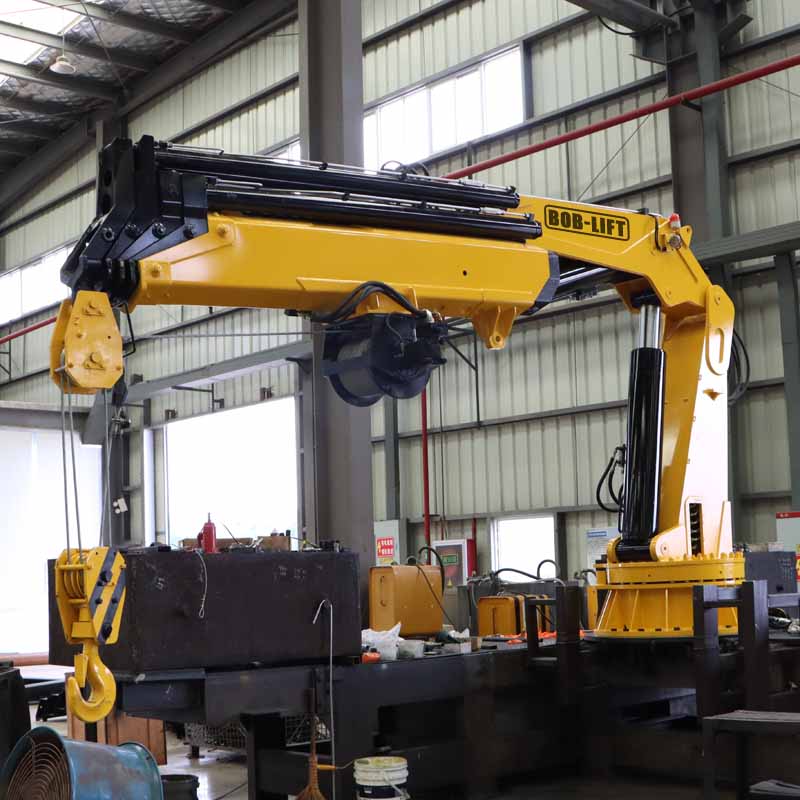

"Hands and feet" - Servo hydraulic system: According to the instructions of the "brain", the highly responsive servo hydraulic system starts to work. It mainly realizes two major functions:

Constant tension of the hook/active heave compensation: This is one of the most crucial technologies. The system precisely controls the rope retraction and release of the hoist to keep the hook at a constant height relative to the seabed or the wharf when the ship moves up and down. The goods seem to be suspended by an "invisible rigid rod", completely unaffected by the rise and fall of the hull.

Anti-sway system: By fine-tuning the lifting and luffing actions of the boom, it actively counteracts the "pendulum effect" generated by the goods in the air, achieving precise and rapid positioning of the goods, which greatly improves the operation efficiency and safety.

The future marine crane stabilization technology will be more intelligent. By integrating more advanced AI algorithms, digital twins (creating a completely consistent virtual ship crane in a computer for simulation and prediction), and Internet of Things (iot) technologies, marine cranes will not only be able to "resist" wind and waves, but also "understand" and "adapt" to the Marine environment, achieving fully automatic, safer and more efficient operations than human operation.
