The Mystery of Hydraulic Power: A Comprehensive Analysis of The BOB-LIFT Crane Hydraulic System

In the modern industrial field, cranes can be regarded as a perfect combination of strength and beauty. Within the body of this steel giant, a sophisticated hydraulic system is quietly operating, transforming insignificant mechanical movements into tremendous force. BOB-LIFT engineers said, "The hydraulic system is the core of the crane, and its performance directly determines the working efficiency and safety level of the equipment." This article will take you on an in-depth exploration of this magical energy transfer system.

Chapter One: Basic Components of the Hydraulic System

The hydraulic system is mainly composed of four core components, each of which performs its own duties and works together to complete the transmission and amplification of force.

Power component - hydraulic pump

The hydraulic pump is like the heart of the system, converting the mechanical energy of the electric motor or engine into hydraulic energy. BOB-LIFT adopts a variable axial piston pump, which can automatically adjust the output flow according to the load demand to achieve the optimization of energy consumption. When the pump body rotates, the plunger reciprocates within the cylinder, forming an oil suction and pressure process, providing stable power for the entire system.

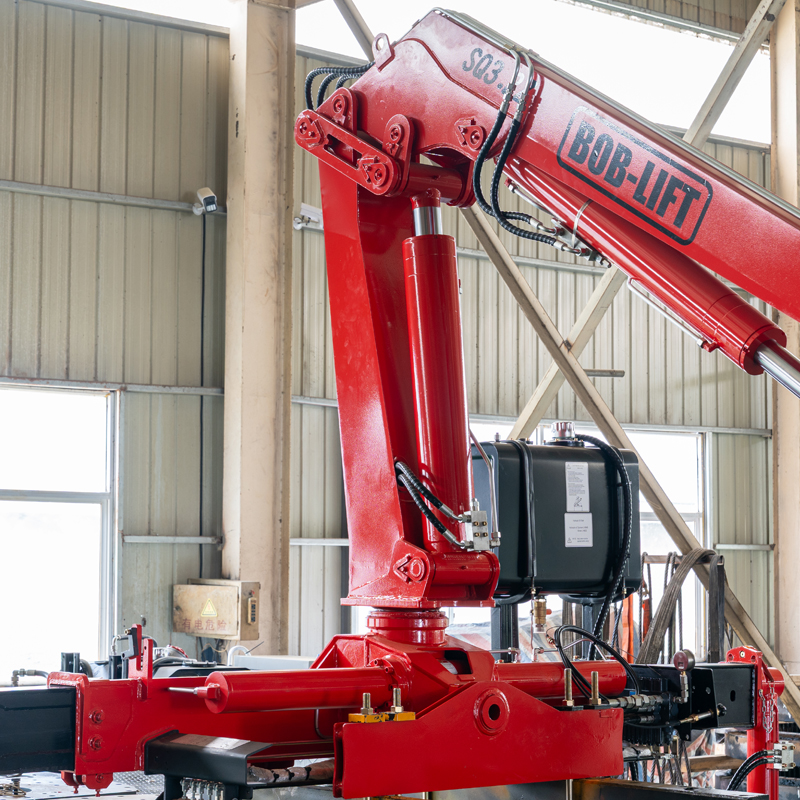

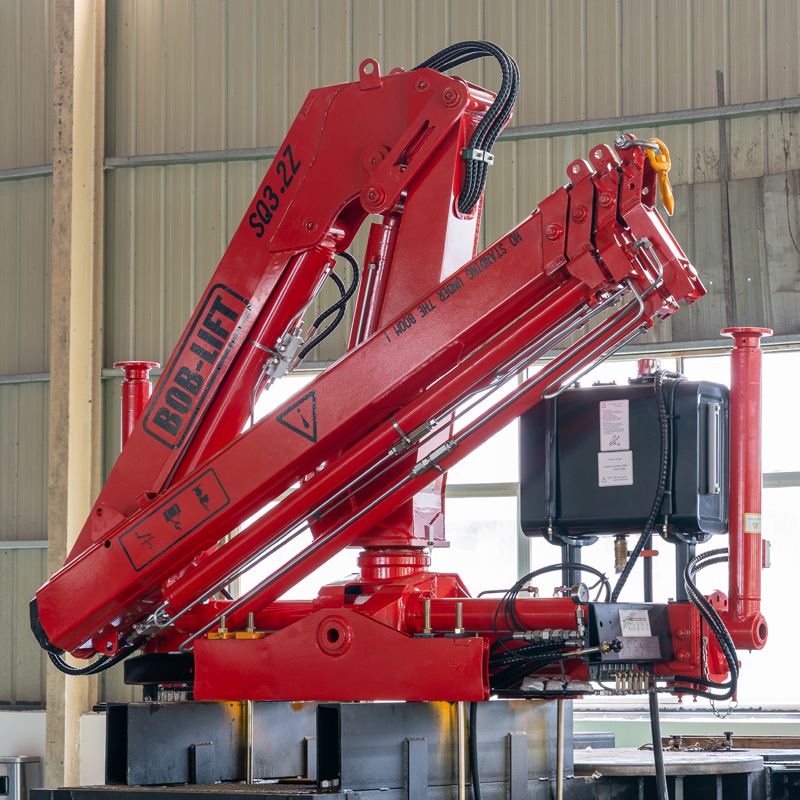

Actuating elements - hydraulic cylinders and hydraulic motors

A hydraulic cylinder is a device that converts hydraulic energy back into mechanical energy. When high-pressure oil enters the cylinder, it pushes the piston rod to extend or retract, thereby generating linear motion. The main boom lifting cylinder of the BOB-LIFT crane adopts a multi-stage telescopic design, with a maximum working pressure of up to 35MPa, equivalent to withstanding a pressure of 350 kilograms per square centimeter.

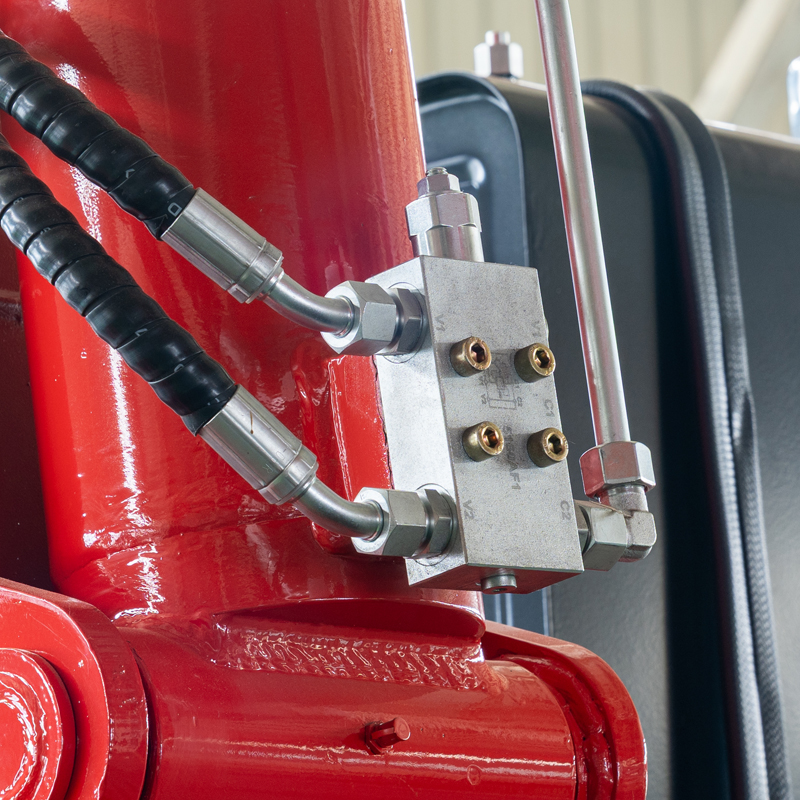

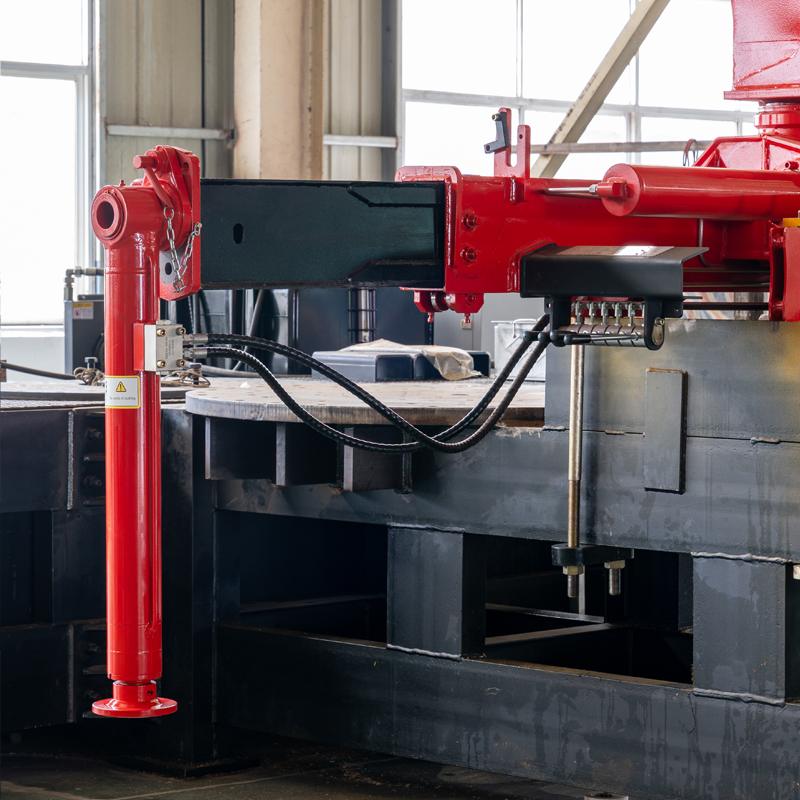

Control component - hydraulic valve group

The hydraulic valve is like the "nervous system" of the system, precisely controlling the flow direction, pressure and flow rate of the oil. BOB-LIFT adopts electro-hydraulic proportional control valves. Through microcurrent signals, precise adjustment of hydraulic parameters can be achieved, and the operational sensitivity reaches the millisecond level.

Auxiliary components - fuel tank, oil filter and pipelines

The oil tank stores hydraulic oil and dissipates system heat. The oil filter ensures that the oil cleanliness reaches NAS level 8 or above. The high-pressure pipeline adopts steel wire braided rubber hose, and the burst pressure is four times the rated working pressure, ensuring absolute safety.

Chapter Two: The Principle of Force Amplification: The Engineering Wonder of PASCAL's Law

The core of force amplification in hydraulic systems is based on PASCAL's law proposed by Blaz PASCAL in the 17th century: "Any pressure applied to any part of a sealed liquid must be transmitted in all directions in its original magnitude."

Mechanical amplification formula:

F₁/A₁ = F₂/A₂

(Where F is the force and A is the area of the piston)

Practical application example

Suppose the hydraulic pump applies A force (F₁) of 100kg to the small piston (with an area A₁=10cm²), and the resulting pressure is 10kg/cm². When this pressure is transmitted to the large piston (with an area of A₂=1000cm²), a force of 10,000 kg (F₂) will be generated. Based on this principle, the hydraulic system achieves a hundredfold amplification of the output force with a smaller input force.

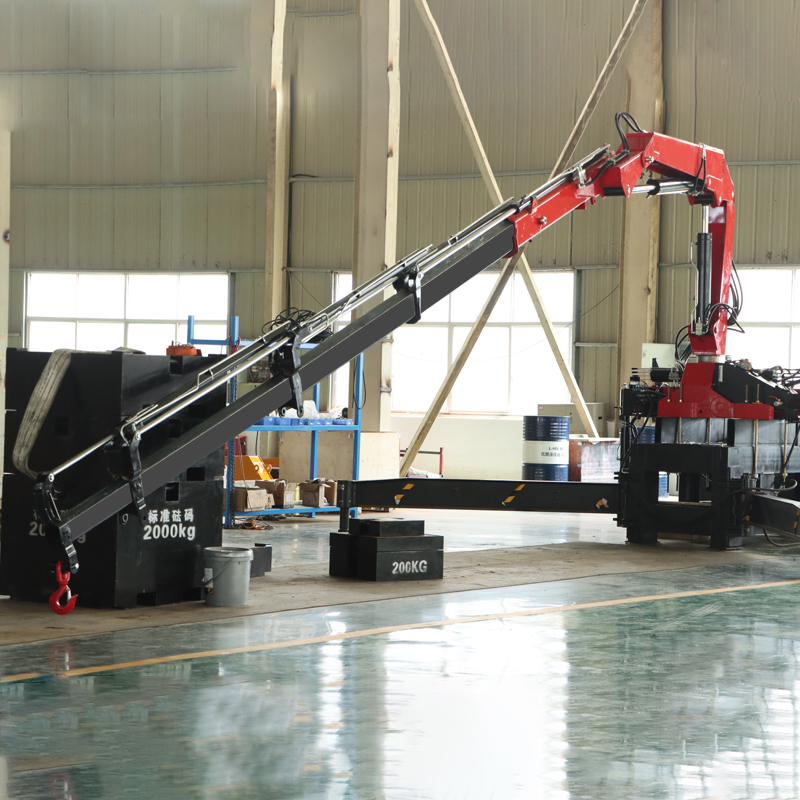

The BOB-LIFT crane, through a multi-stage hydraulic cylinder design, further amplifies this effect, enabling a maximum lifting capacity of 500 tons, equivalent to lifting 300 family cars simultaneously.

Chapter Three Intelligent Control: Technological Assurance for Precise Operation

Modern hydraulic systems have bid farewell to pure mechanical operation and entered the era of intelligent control.

Electro-hydraulic proportional control technology

The slight movement of the operating handle is converted into an electrical signal. The controller proportionally adjusts the opening degree of the valve core according to the size of the signal, achieving stepless regulation of the flow rate. This enables the lifting speed of heavy objects to be precise to the millimeter per second level, fully meeting the requirements of precise installation operations.

Load sensing system

The system monitors the load changes in real time and automatically adjusts the output flow and pressure of the pump. When no-load or light-load conditions are detected, the power output is automatically reduced, achieving an energy-saving effect of up to 30%.

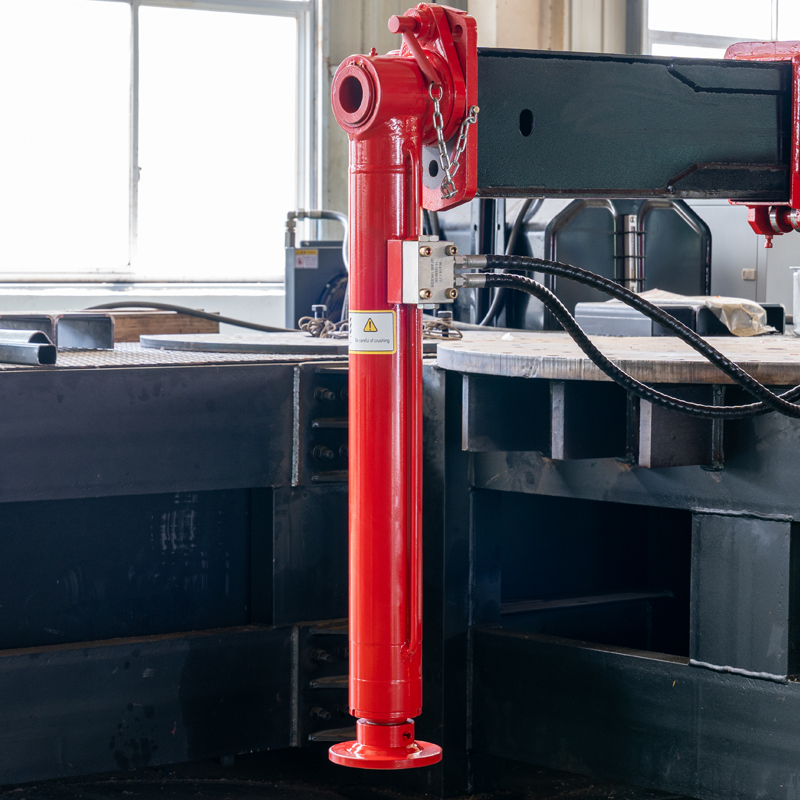

Safety protection mechanism

The integrated pressure sensor monitors the system pressure in real time. When it exceeds the set value, the overflow protection is immediately activated. Meanwhile, the hydraulic locking device can lock the cylinder at any position to prevent it from accidentally falling.

Chapter Four Technological Innovation: The Advantages of BOB-LIFT's Hydraulic System

High-efficiency and energy-saving design

Adopting a negative flow control system, the power output is matched according to the actual demand, which saves more than 25% of energy compared with the traditional quantitative system. The thermal energy management system ensures that the hydraulic oil is always at the optimal working viscosity through intelligent control of oil temperature.

Adaptability to extremely cold environments

The cold start mode developed for low-temperature environments can start normally at -40℃. The hydraulic oil preheating system and low-temperature oil formula ensure good fluidity even under extremely cold conditions.

Silent operation technology

By optimizing the pump body structure, using sound-absorbing materials and flexible connection technology, the system noise is controlled below 70 decibels, which is equivalent to the noise level of an ordinary office environment.

Chapter Five Maintenance and Care: The Key to Extending System Lifespan

Key points of daily inspection

Check the hydraulic oil level, the sealing performance of pipe joints and the changes in system noise every day. Check the cleanliness of the oil every month and replace the filter element regularly.

Oil and fluid management specifications

Use the specified type of hydraulic oil and change it every 2,000 working hours or annually. Keep the oil temperature within the optimal range of 30-60℃ to prevent high temperatures from accelerating the oxidation of the oil.

Early Warning of Common Faults

Slow movement indicates a decline in pump efficiency. Excessively high oil temperature might be due to a malfunction of the cooler. The crawling phenomenon of the actuator often indicates that air has entered the system.

With the development of electro-hydraulic integration technology, BOB-LIFT is developing Intelligent Hydraulic System 4.0. By integrating AI algorithms to predict load changes and adjust system parameters in advance; The electronic hydraulic pump (EHP) technology is adopted to achieve energy distribution on demand. Develop biodegradable hydraulic oil to reduce environmental impact. The traditional technology of hydraulics is rejuvenating in the era of intelligent manufacturing.

Expert tip: The maintenance of hydraulic systems must be carried out by professional technicians. Using non-original factory parts may lead to performance degradation and safety risks!
