Maintenance Mini-Class: 5 Key Steps To Extend The Service Life of BOB-LIFT Marine Cranes

In the field of Marine engineering, Marine cranes, as key loading and unloading equipment, their service life is directly related to operating costs and operational safety. BOB-LIFT research shows that standardized maintenance can extend the lifespan of equipment by more than 40% and reduce the risk of sudden failures by 60% at the same time. This article will systematically introduce five core maintenance strategies for extending the service life of ship cranes.

The first step: Daily inspection - Prevent problems before they occur

Daily inspection is the foundation of maintenance work. Before daily operation, it is necessary to check whether there are cracks or deformations in key parts such as the boom and base. Special attention should be paid to the condition of the welding points. It is recommended to use magnetic particle flaw detection for professional inspection regularly.

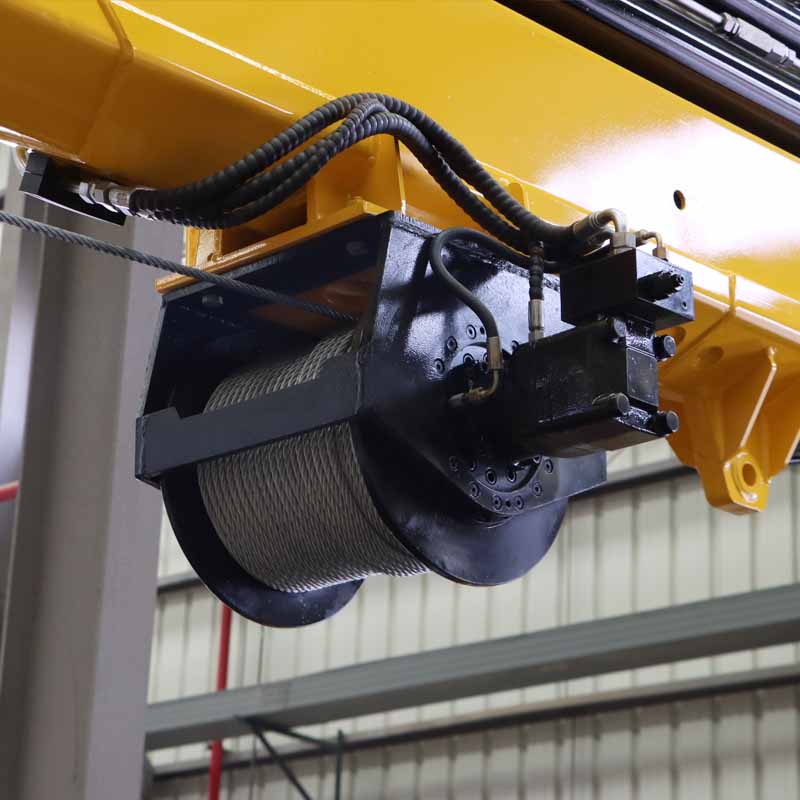

The assessment of steel wire ropes is particularly important. The "10x diameter method" should be used to detect broken wires. If the number of broken wires within any lay exceeds 5% of the total, they must be replaced immediately. At the same time, the lubrication condition and surface wear should be checked. When the diameter decreases by more than 7%, it should be scrapped.

Step Two: Fine maintenance of the lubrication system

The maintenance of the lubrication system requires the adoption of specialized lubrication schemes based on different components. Slewing bearings need to be lubricated with lithium-based extreme pressure grease. Maintenance should be carried out every 200 hours. When applying grease, ensure that all the old grease is completely discharged.

The hinge points of the hydraulic cylinder require marine-grade anti-corrosion grease. Maintenance should be carried out weekly. Make sure to clean the oiling nozzle before applying grease. The gearbox should use ISO VG320 gear oil and be maintained once every 2000 hours, keeping the oil level at two-thirds of the window.

Technical tip: When operating in high-temperature and high-humidity sea areas, the lubrication frequency should be increased by 30% to ensure the best maintenance effect.

Step 3: In-depth maintenance of the hydraulic system

Oil product management is the key point of hydraulic system maintenance. The cleanliness of the oil needs to be tested every 500 hours, and the NAS grade should be controlled within level 8. Replace the oil suction filter regularly. Replace it immediately when the pressure difference exceeds 0.5bar.

The sealing check is equally important. It is recommended to use an infrared thermal imager to detect leakage at pipeline joints. Measure the settlement of the hydraulic cylinder every month. A settlement of no more than 2mm within 24 hours is considered qualified.

According to statistical data, 70% of hydraulic failures are caused by oil contamination. Through standardized maintenance, 80% of related failures can be reduced.

Step 4: Electrical System protection Strategy

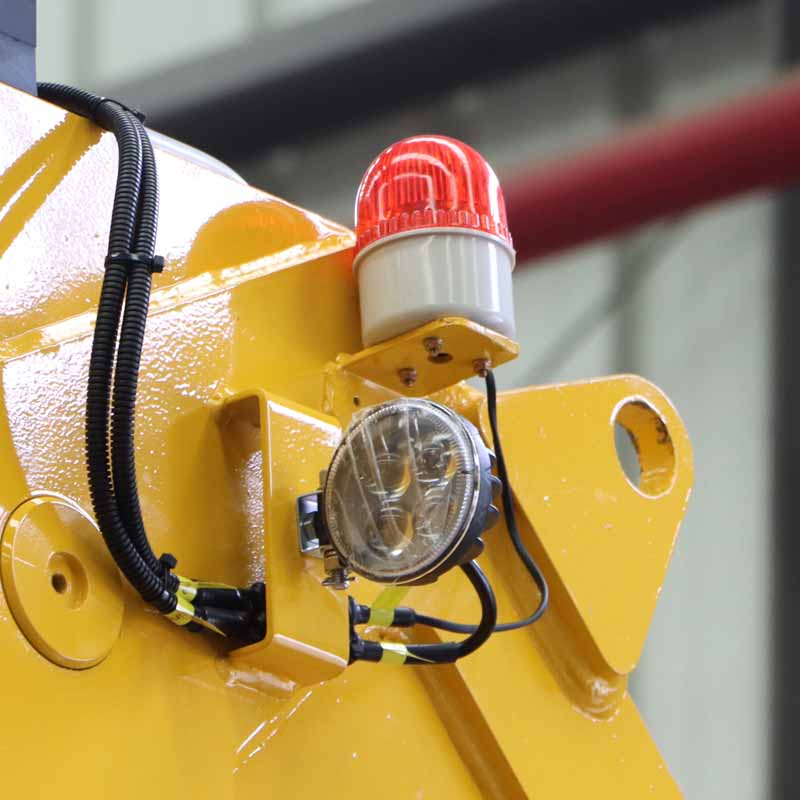

The Marine environment has special requirements for electrical systems. The sealing performance of the electrical box needs to be inspected weekly, with a focus on checking the effectiveness of the IP56 protection grade. The insulation resistance of the motor should be measured with a megohmmeter every month to ensure that the resistance value is greater than 1MΩ.

The salt spray crystals inside the control cabinet need to be cleaned every quarter, and the anti-corrosion coating should be replaced in time to ensure the long-term stable operation of the electrical system.

Step 5: Professional-level regular maintenance

BOB-LIFT suggests establishing a hierarchical maintenance system. First-level maintenance is carried out every 500 hours, including basic operations such as structural tightening, safety function testing and lubrication replenishment.

Secondary maintenance is carried out every 2,000 hours, involving deeper maintenance such as hydraulic oil replacement, brake adjustment and non-destructive testing.

The third-level maintenance is carried out every 12,000 hours. This is the most comprehensive maintenance, including important maintenance items such as bearing replacement, steel structure reinforcement and control system upgrade.

Adhering to the principle of "prevention first and precise maintenance", the BOB-LIFT ship crane can achieve an extremely long service life of 100,000 hours without major repairs. It is suggested to establish a digital maintenance file and monitor the equipment status in real time through sensors to truly achieve predictive maintenance.

Experts remind: All maintenance operations must be carried out by certified professionals. It is strictly prohibited to conduct repairs without power off to ensure the safety and reliability of the maintenance process.
