【 Deep Technical Analysis 】 How Does BOB-LIFT Knuckle Boom Crane Achieve "small Size, Big Strength"?

Why is the Knuckle Boom an Industry Revolution?

Today, with the soaring cost of storage space, the pain points of large demand for the width of traditional crane channels (generally ≥3.5 meters) and many blind areas have become increasingly prominent. BOB-LIFT's folding boom cranes achieve this through three core technological breakthroughs:

2.2m narrow track operation (industry average 3.8m)

Vibration amplitude < 0.5mm under 8 tons load (key index of precision handling)

40% reduction in energy consumption

Analysis of Core Technology Innovation

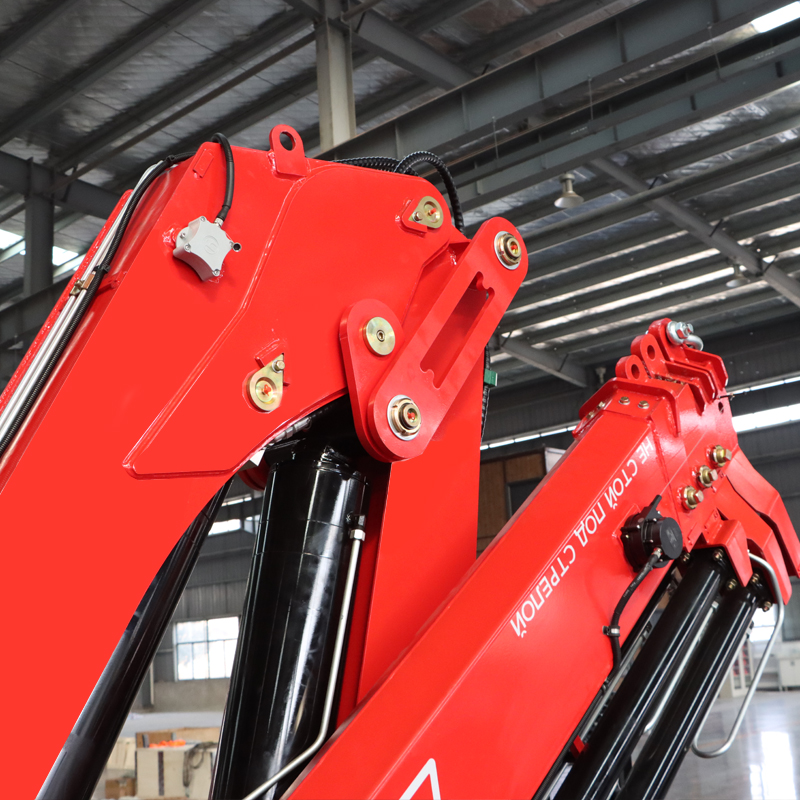

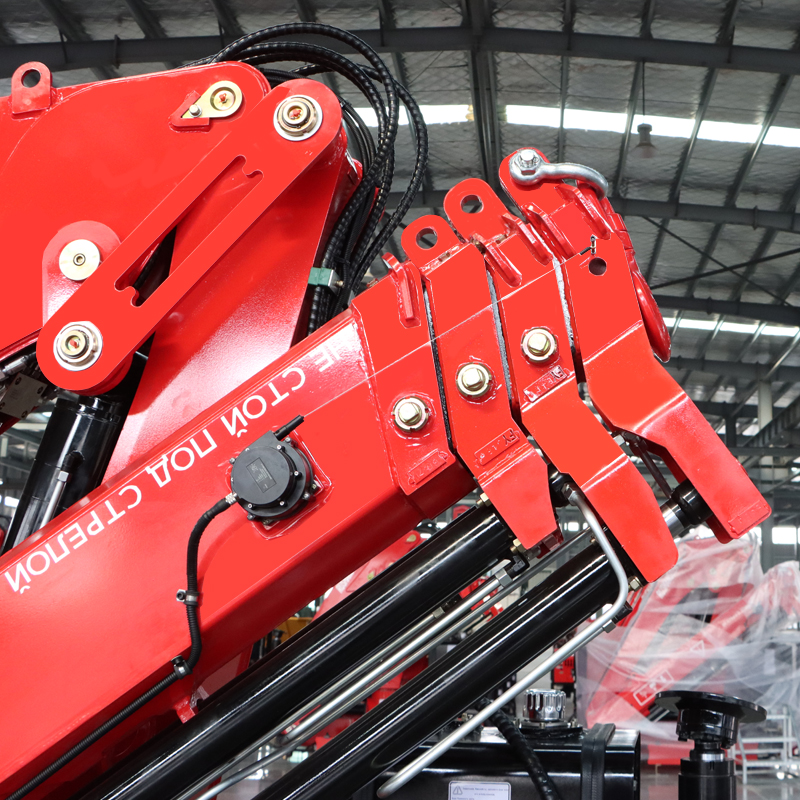

1. Bionic Knuckle Boom Structure

Inspired by the folding and bursting mechanism of the forelimbs of the mantis as it hunts

Technical implementation:

Three-stage articulated design: 210° folding through high-strength steel joints (yield strength ≥690MPa)

Dual cylinder synchronous system: eliminate the risk of biased load of traditional single cylinder (error < 0.3°)

2. Intelligent Hydraulic System

Industry pain point: Ordinary cranes are prone to "crawling" during micro-operation

Our solution:

High frequency proportional valve (response time 8ms, 3 times faster than competing products)

Load sensitive pump: Distribute flow on demand, reducing idle work by 35%

Measured data: When the wafer was transported in an electronics factory in Shenzhen, the positioning accuracy reached ±1mm

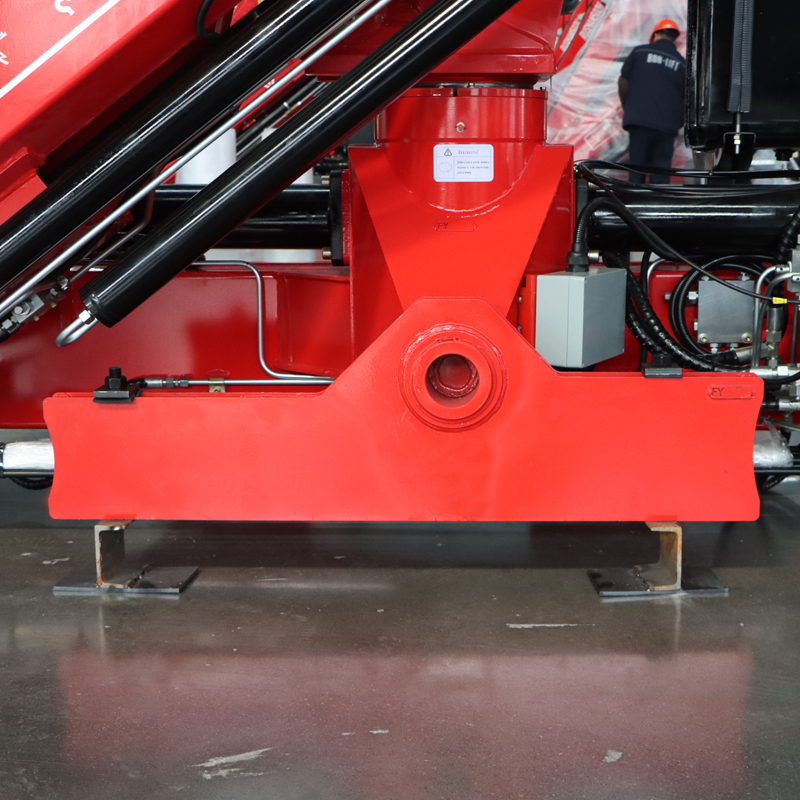

3. 360° Omnidirectional Chassis

Traditional problem: Turning needs to reserve radius, resulting in low utilization of warehouse dead corners

The breaking point:

Cross shaft slewing bearing: load capacity increased by 50%

Four-wheel independent drive: with ABS anti-lock, wet ground does not slip

Rigorous Testing: Data Speak

We have completed a series of tests in the National Construction Machinery Quality Inspection Center:

Continuous operation reliability reached 500 hours without failure

Minus 15 degrees Celsius or even minus 32 degrees can be successfully activated

Dynamic braking distance ≤1.2m/10km/h

Suggestions to Some Customers Who Have Needs

Selection error: Do not blindly pursue tonnage, torque/weight ratio is the key (our 8T model weight is only 6.2 tons)

Maintenance points: Check the hydraulic pipeline with an infrared thermal imager every month to find micro-leaks in advance

Upgrade direction: The next generation will integrate AI anti-swing algorithm (the laboratory has achieved hook swing Angle < 1°)

Real innovation is not parametric stacking, but using technology to solve the actual pain points of customers.

It is with these goals that BOB-LIFT continues to progress to become the preferred choice of more customers.
