Crane Mechanics Principles: How Does A Steel Boom Lift A Thousand-ton Load?

When you see a crane effortlessly lifting hundreds of tons of heavy objects, are you curious about where this seemingly counterintuitive force comes from?

I. Modern Interpretation of the Lever Principle

The basis of mechanics can be traced back to the ancient principle of the lever. Modern cranes have maximized this principle through optimized design:

Boom and moment: When the crane extends its boom by 50 meters, the moment generated by 10 tons of cargo can be as high as 500 tons · meters. This means that at least 50 tons of counterweight blocks need to be placed in a 10-meter counterweight area to maintain balance.

Stability coefficient: Modern cranes typically maintain a safety stability coefficient of 1.5 times to ensure stability even in emergency situations.

Ii. The Power Magic of the Hydraulic System

Hydraulic technology has endowed cranes with astonishing power amplification capabilities:

PASCAL's Law application: Through the area difference of the hydraulic cylinder, an input force of 10kg can generate an output force of 1000kg.

Three-stage hydraulic system: Modern cranes use multi-stage hydraulic cylinders, with a working pressure that can reach 350bar, equivalent to withstanding the water pressure at a depth of 3,500 meters under the sea.

Iii. Mechanical Design of Key Components

High-strength steel structure

It adopts HLA-100 special steel, with a tensile strength of up to 690MPa

The hollow truss design reduces the weight by 30%

Digital simulation optimizes the stress distribution

Intelligent counterweight system

Automatically calculate the optimal counterweight

The rotational speed is automatically limited when 80% of the rated load is lifted

The safety lock is triggered when the wind speed exceeds the limit

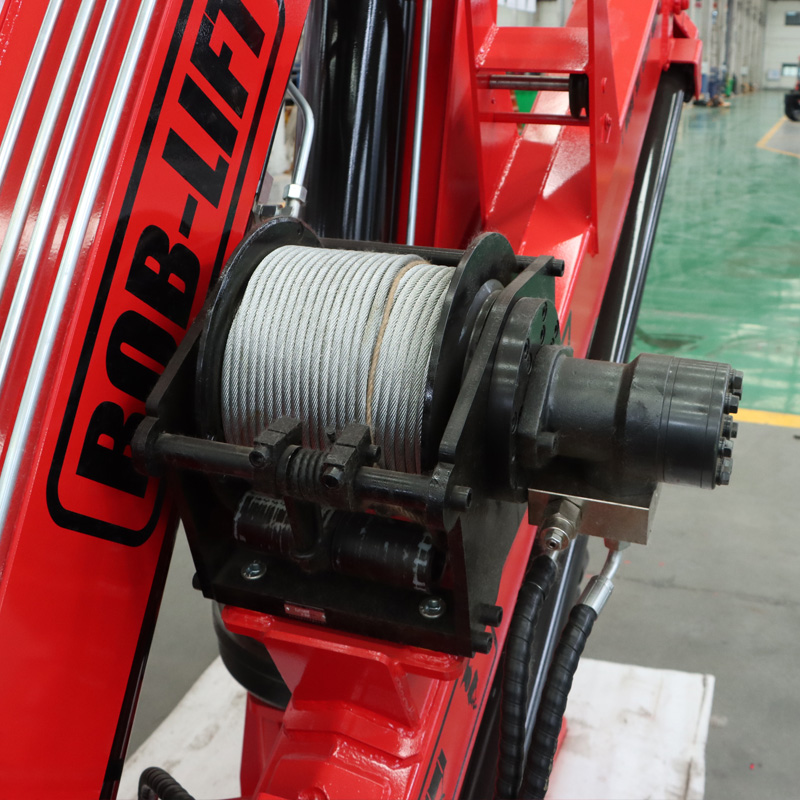

Precise calculation of steel wire ropes

The breaking tensile force of the high-quality steel wire rope with a diameter of 28mm reaches 55 tons

Maintain a safety factor of five times in actual operations

Iv. Extreme Challenges in Engineering Practice

During the construction of the Shanghai Tower, engineers faced the challenge of hoisting a 500-ton damper to a height of 632 meters. The solutions include:

The specially designed ZSL2700 boom tower crane is adopted

Develop the "dual-machine lifting and hoisting" synchronous system

Control the positioning accuracy within ±3mm

The installation of offshore wind power faces a more complex environment:

The dedicated installation vessel has a dynamic compensation capacity of ±1.5m

It can withstand waves as high as 2.5 meters

The operation efficiency reaches three wind turbine units per day

V. The Boundary between Safety and Innovation

The safe operation of cranes follows strict calculation formulas:

The overturning moment =1.1×(lifting moment + wind load moment) ≤ 0.8× stabilizing moment

Cutting-edge technologies are breaking through traditional limits:

The digital twin system monitors over 100,000 response points in real time

Carbon fiber booms can reduce weight by 40% (the current cost is 8 times that of steel structures).

From Archimedes' lever principle to modern intelligent cranes, humans have constantly broken through the limits of force transmission. These steel arms are not only engineering wonders but also the crystallization of human wisdom.
