BOB-LIFT 4-ton Knuckle Boom Marine Crane Comprehensive Analysis

Why is the articulated arm structure so popular in the marine industry?

Compared to straight-arm cranes, the main feature of knuckle cranes is that the arm can be folded and bent. This structural characteristic brings two core advantages:

Compact storage. When not in use, the arm can be folded and retracted, significantly reducing the space occupied on the deck. This is crucial for the limited space of ship decks.

Flexible operation. The articulated structure enables the hook to "go around" obstacles and precisely reach the work area, even when the cargo has been released from the cable. It can still reach the sea surface in such cases.

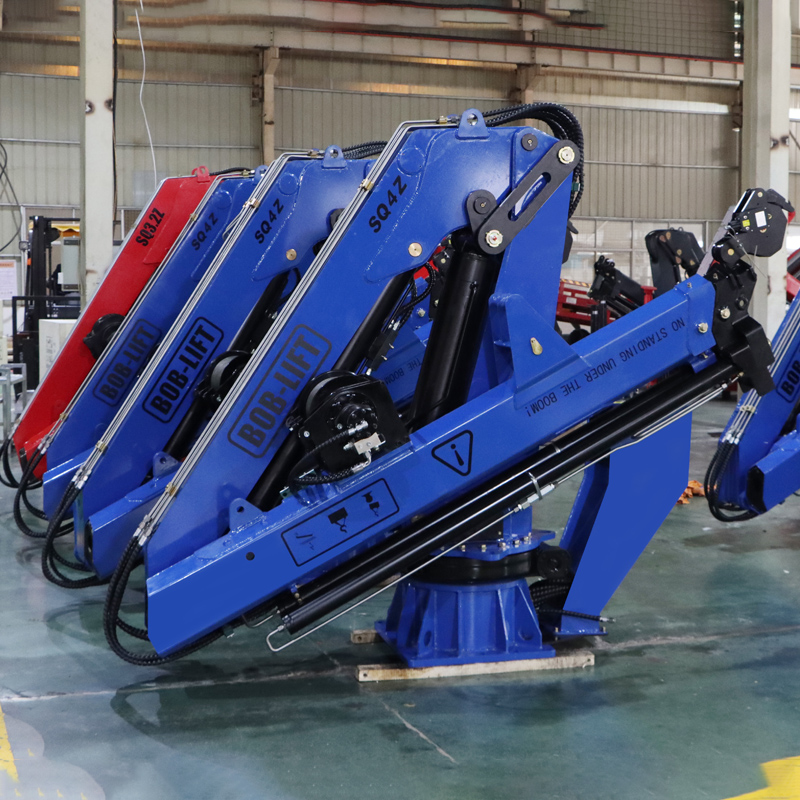

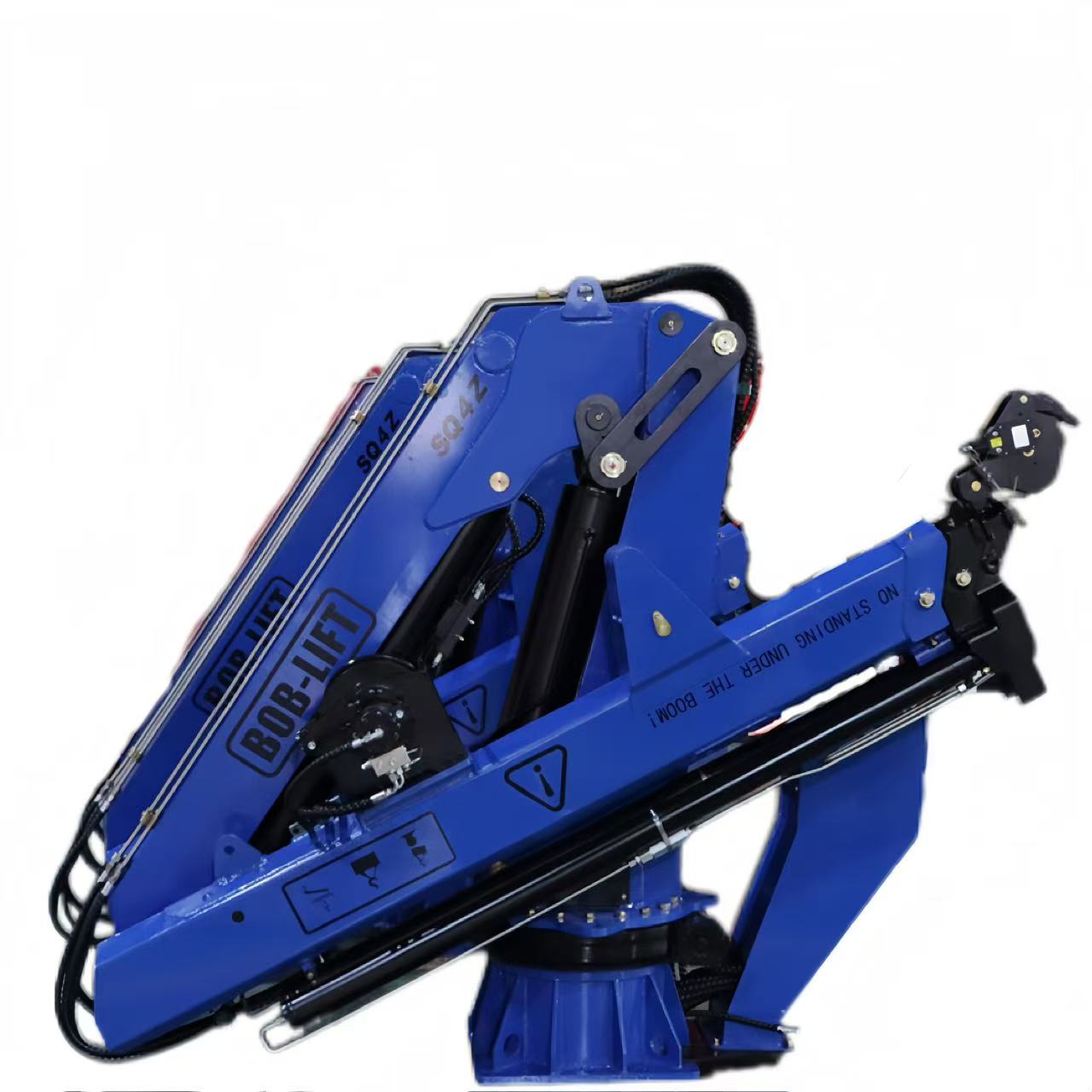

The technical secrets of the BOB-LIFT 4-ton knuckle boom marine crane

This model has a maximum lifting capacity of 4 tons, a rated lifting moment of 8.4 ton·m, and a total weight of 1280 kilograms. It features a 360° continuous rotation design, making the operation flexible and convenient.

Compact design, maximizing deck space

With a hinged structure design, the arm can be folded to occupy minimal space, making it particularly suitable for installation on small and medium-sized ships with limited space. Reduces the impact on the ship's stability.

Global top-level configuration, ensuring reliable quality

In marine environments, "reliability" is the highest standard. This product adopts internationally renowned brands for its core hydraulic components. The multi-way valve and balance valve use imported valve cores, providing precise control and quick response. The hydraulic hose adopts a four-layer steel wire winding structure, ensuring sufficient safety redundancy. The hydraulic cylinder uses the Yanhuang brand, while the hydraulic pump is provided by a well-known domestic hydraulic component supplier, ensuring stable and reliable performance.

360° unrestricted rotation, covering all scenarios

Thanks to the mature slewing bearing design, this ship crane can achieve 360° continuous unrestricted rotation. No matter where the cargo is located on the ship, the operator can quickly position the hook there without the need for reverse rotation, significantly improving operational efficiency.

BOB-LIFT fully understands the principle of "one ship, one condition", and has provided a variety of optional accessories for this 4-ton crane. The remote control device enables the operator to stay away from dangerous areas and complete the lifting operation in the best viewing position. The grab is suitable for bulk cargo handling, and the work basket can carry personnel for high-altitude maintenance work. The top seat facilitates the operator's observation, while the rear legs further enhance the stability of the equipment.

Corrosion-resistant design

The BOB-LIFT marine series adopts marine-grade anti-corrosion coatings in the painting process. The key structural components undergo special surface treatment, which can effectively resist marine salt fog erosion and extend the service life of the equipment.

Safety redundancy configuration

In marine lifting operations, "what if" scenarios are the greatest concern. This product is equipped with multiple safety protections by default: the overload protection device automatically cuts off dangerous actions when overloaded; the explosion-proof design of the balance valve ensures that the boom will not suddenly drop even if the hydraulic pipeline is ruptured; the fail-safe braking system equips all actions with fail-safe brakes, and automatically locks when power is cut off or pressure is lost.

Multi-scenario Adaptation

In fishing operations, it can be used for lifting fishing nets and transporting catches. On engineering ships, it undertakes the tasks of material supply and equipment hoisting. On research ships, it is responsible for the deployment and retrieval of scientific research equipment. In port barge scenarios, it completes the transfer operations between ships.

Because every lift is a transmission of trust; every descent is a commitment to safety.
